Your first drawing

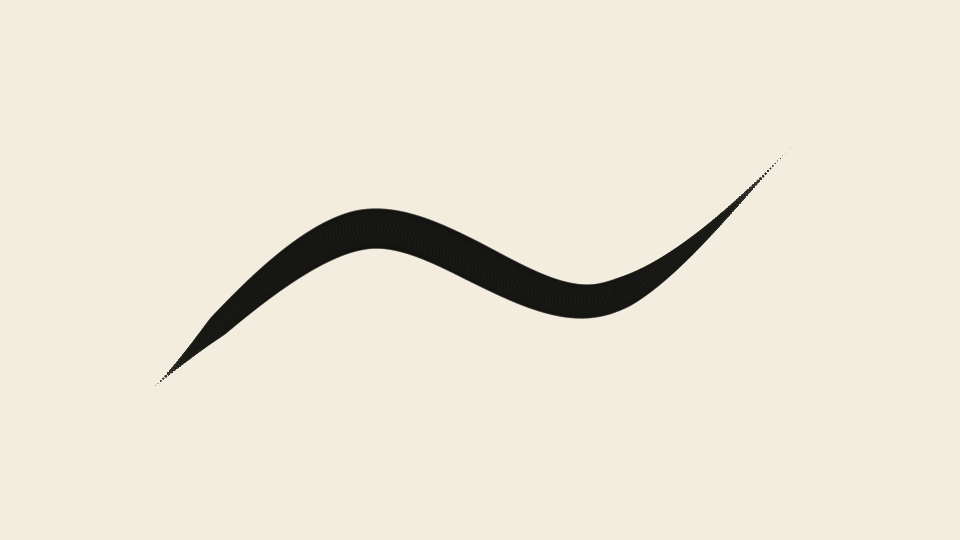

This is the unmodified starter output. After changing brush size or color, compare your PNG with this baseline.

Install Codeboard from npm with npm install -g codeboard-studio, then open a terminal in an empty working folder. Node.js 22.22 or later is required. If you installed Codeboard as a project dependency, use npx codeboard for the commands below.

codeboard init scene.ts
codeboard run scene.ts

init scene.ts creates an erasable TypeScript module. It refuses to overwrite an existing file. run executes the script and makes the Codeboard API available as codeboard-studio.

The starter creates two files:

Change the drawingCopy Anchor Link

Open scene.ts in your coding agent or text editor. The stroke is a curve through four points. Each point has a position and pressure; the brush controls how those samples become paint.

Change size: 44 to size: 70, or replace the stroke color #191916 with #b77528. Run the script again:

codeboard run scene.ts

The starter deliberately regenerates its two output files. Save subsequent edits under a different filename if you want to keep both versions. Reopening a saved project lets you revise existing artwork without rebuilding the scene.

Preview the projectCopy Anchor Link

codeboard preview output/first.cboard

Open the local address printed in the terminal. The preview is for reviewing the artwork; make changes through code. Press Ctrl+C to stop the preview server.

Export a storyboard sheetCopy Anchor Link

codeboard render output/first.cboard --output sheets

The output directory contains panel images and a storyboard PDF. Add more panels to the script to develop a sequence.

Use TypeScriptCopy Anchor Link

For a complete local npm project with a strict configuration and a runnable .mts example, follow TypeScript authoring. Read project concepts for the document hierarchy, editing representations and frame units.

codeboard run also accepts .ts and .mts scripts. Type annotations and import type are supported. .mts always uses ES modules. The runner does not type-check, apply tsconfig path aliases, or compile JSX, enums, or parameter properties; use ordinary JavaScript or erasable TypeScript syntax.

Give your agent a working briefCopy Anchor Link

For example:

Create a 16:9 storyboard with three panels: a character enters, notices a light, and reaches toward it. Use separate rough and ink layers. Run the script, render a contact sheet, inspect the images, and save the editable project before revising the hand pose.

Continue with drawing, animation, or the review loop.
