Animate with named pose controls

Create a named control such as Bend or Lean and animate its influence. Controllers work over existing layer keys, which remain editable.

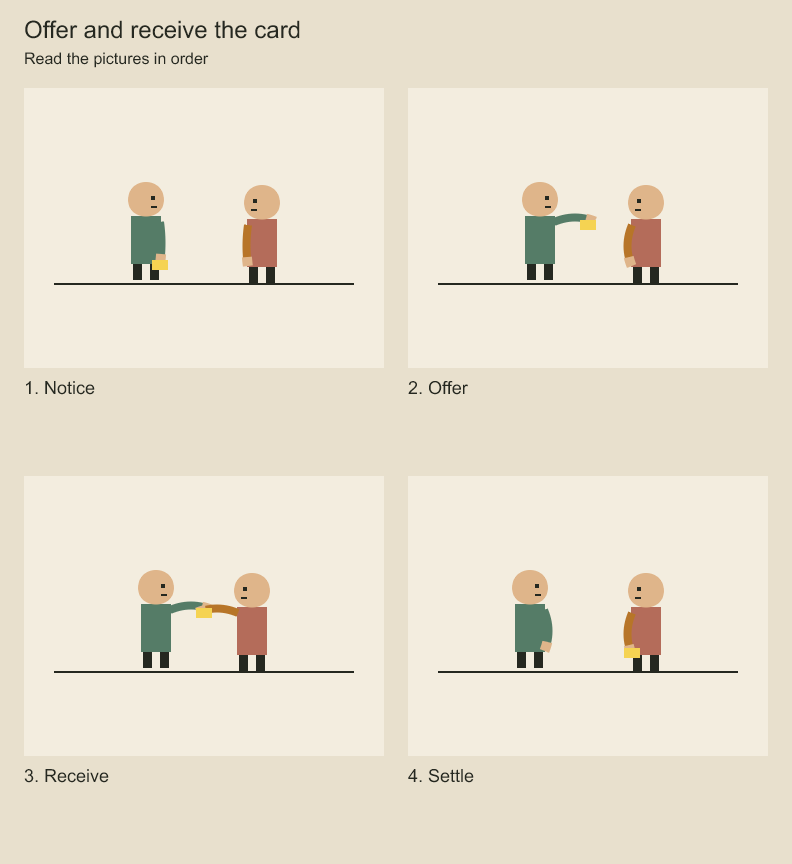

Read a gesture across four shots. Can you follow who offers and who receives the card?

Watch the yellow card and the two hands: notice, offer, receive, then hold. Use the stills to compare each pose. The sequence combines arm bends, position controls and held mouth drawings. The card path and mouth cues are authored explicitly.

Named live pose controllersCopy Anchor Link

A shot can store up to 64 ShotController records. Each named controller drives up to 256 explicit target layers through one animated weight. Controllers evaluate after ordinary layer keys in their saved array order; they preserve those base keys. The resulting transform, opacity and depth feed rendering, affine/mesh point queries and joint skin evaluation.

project.editShotAnimation(animationId, [{
  op: 'controller.put',
  controller: {
    id: 'controller:bend', name: 'Bend', mode: 'additive', weight: 0,
    targets: [
      { layerId: elbowLayerId, values: { rotation: 0.18 } },
      { layerId: faceLayerId, values: { opacity: -0.1 } },
    ],
    keyframes: [
      { frame: 0, weight: 0, easing: 'ease-in-out' },
      { frame: 12, weight: 1, easing: 'ease-in-out' },
      { frame: 23, weight: 0, easing: 'linear' },
    ],
  },
}]);

replace blends each addressed channel from its current evaluated value toward the target; additive adds weight times the supplied channel offset. Scale offsets are arithmetic, not multipliers. Channels are x, y, scaleX, scaleY, rotation (radians), opacity and depth. Unspecified channels retain their current value. Weight zero has no effect. Weights lie in [0,1]; ordered unique signed frame keys use existing easing and nearest-key extension, with at most 4096 keys. The controller's static weight is used only when it has no keys. Layer transforms and targets are local to each layer's parent space, not world-space constraints.

Updating the same ID replaces its definition in place, preserving stack order. New IDs append; { op: 'controller.remove', id } removes one and reveals the unchanged base animation where no other controller acts. controller.move explicitly reorders the stack. Targets must be distinct existing layers per controller; IDs are globally checked by the project. Layer deletion must repair/remove referencing controllers in the same batch. Object discovery includes shot-controller metadata; complete definitions are in the shot snapshot. Saved plans and ordinary undo/redo/receipts use the existing shot persistence path.

Foreign layer locks protect every controller touching a locked layer or its descendants, including its weight, other targets and relative stack order. Controller evaluation rejects nonfinite results, opacity outside [0,1], or nonpositive depth instead of silently clamping. Geometry validation still decides whether a controlled skin pose folds or collapses. Controller parameters cannot reference other controllers, so there is no expression graph or cycle solver. Controllers do not select drawings, evaluate arbitrary functions or interpolate multidimensional poses. Use controller performance files to transfer numeric controller motion with explicit mappings.

Edit controller weights, keys and orderCopy Anchor Link

project.editShotAnimation(animationId, [
  { op: 'controller.weight', id: 'controller:bend', weight: 0.25 },
  { op: 'controller.key.put', id: 'controller:bend',
    key: { frame: 12, weight: 0.8, easing: 'ease-in-out' } },
  { op: 'controller.move', id: 'controller:bend', beforeId: null },
]);

controller.weight changes the static fallback; an existing key track continues to take precedence. controller.key.put inserts or replaces the key at its signed frame and keeps keys sorted. controller.key.remove takes id and frame, rejecting missing keys. Removing the final key restores static-weight evaluation. Key edits preserve the name, targets, mode, static weight and stack position.

controller.move places the named controller before beforeId; null means the end of the stack. Moving before itself is a no-op. Missing controllers and insertion targets reject. Order matters when multiple controllers affect the same channel, especially replace blends. All these edits run on the isolated shot draft and use the same final validation, lock and transaction paths as definition replacement. Errors include CONTROLLER_MISSING, CONTROLLER_KEY_MISSING or CONTROLLER_MOVE_TARGET details.

Inspect a controller in bounded pagesCopy Anchor Link

shotControllerData(animation, controllerId, query) and project.shotControllerData(animationId, controllerId, query) return detached pages. The query collection is targets or keyframes (default), with offset, limit and an optional signed frame. Default page size is 50, capped at 200; the existing 256 KiB response limit rejects oversized pages rather than truncating records.

Every page includes the controller name/mode, its zero-based stack index, static weight, target/key counts and nextOffset. With a frame, evaluatedWeight uses the same weight evaluator as rendering. Target items then include evaluatedState: the layer's final local transform, opacity and depth after base keys and all controllers in stack order, not just the selected controller. It is not a world-space matrix or deformed geometry. Without a frame, evaluated fields are null. Key pages retain the authored easing and weights.

Input shot validation still examines the complete snapshot; pagination bounds output, not validation cost. Missing controllers and malformed queries reject. nextOffset is not a snapshot/version token: pin the saved version when collecting multiple CLI pages or preparing an edit plan.
