Correct a drawing hold

Replace a mouth, hand or other drawing for a frame range while retaining the surrounding exposures.

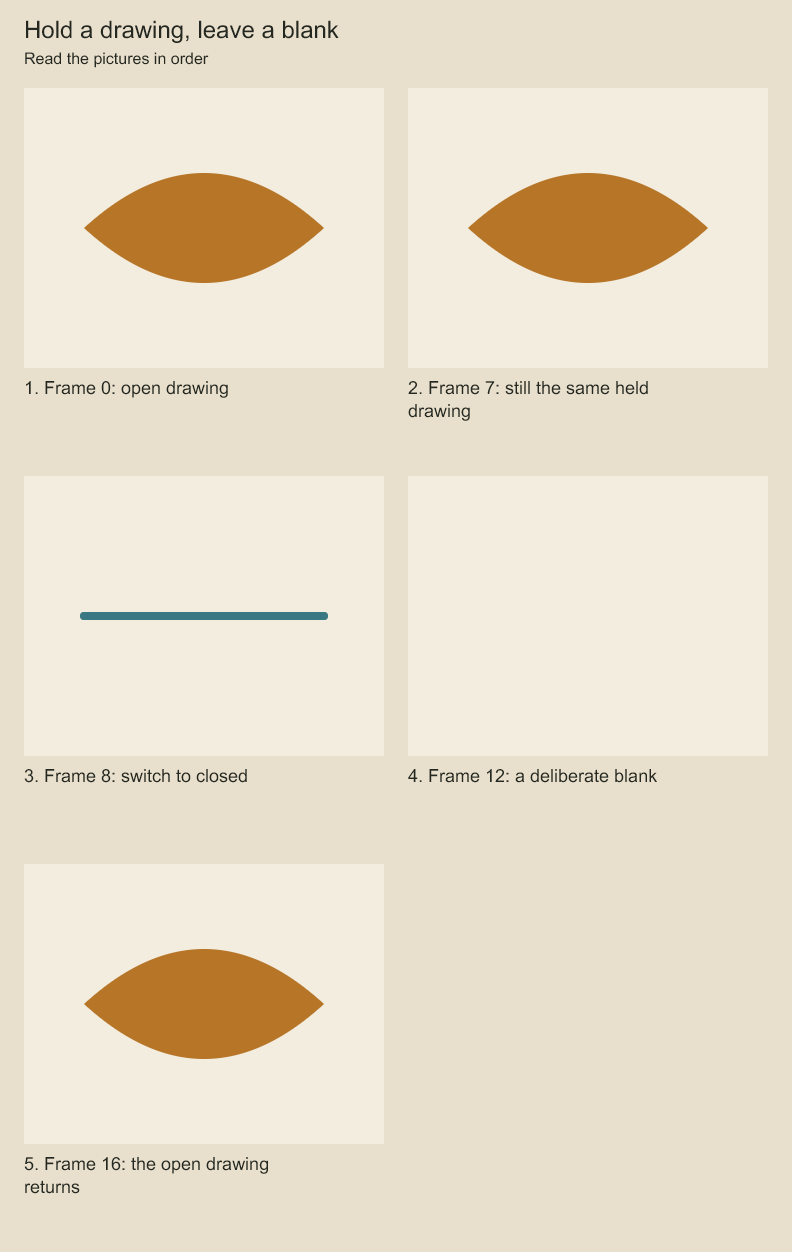

Hold, change and leave a blank. What is visible between drawing keys?

The open eye holds, the closed eye replaces it, then the explicitly blank exposure removes it. A drawing key holds until the next key; a blank exposure is an authored state.

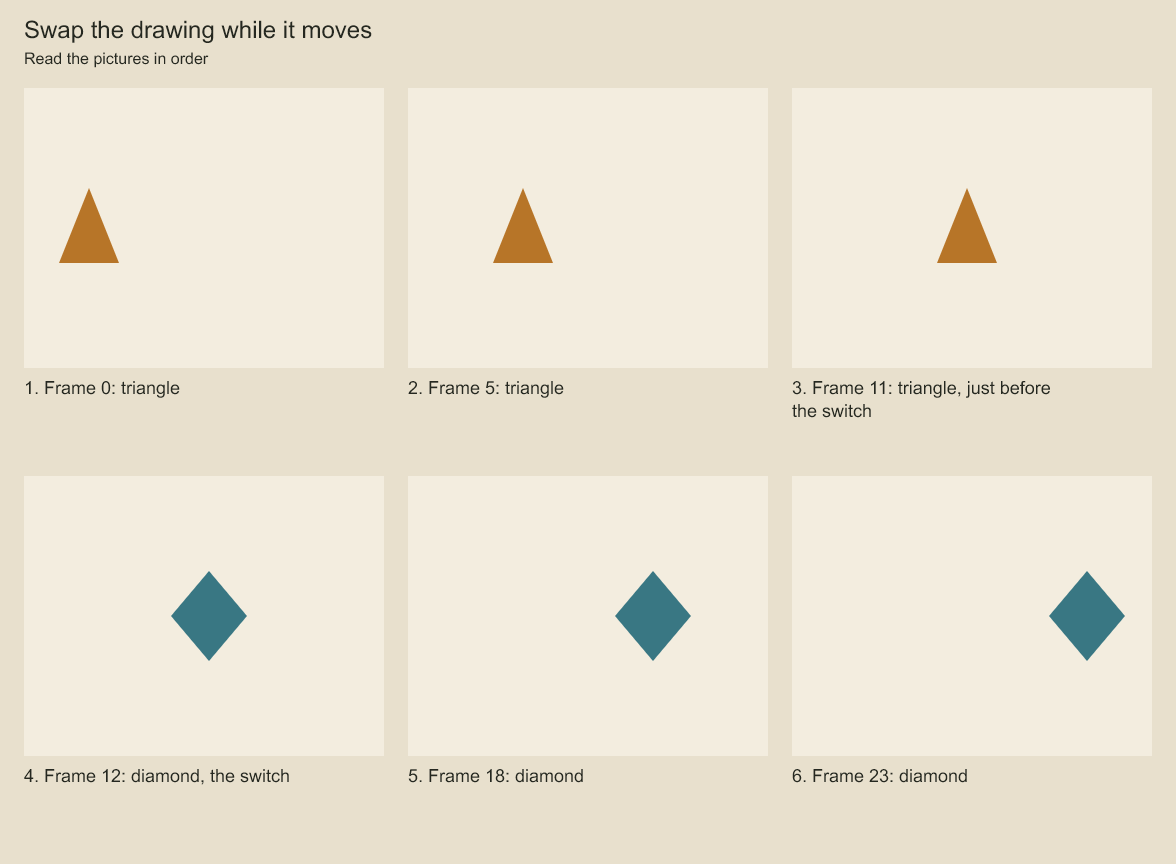

Swap the drawing while it moves. Does a drawing change have to interrupt movement?

Compare frames 11 and 12. The triangle becomes a diamond immediately, while its travel to the right continues. Drawing holds choose the silhouette. Position keys move the whole drawing independently.

Replace one shot drawing holdCopy Anchor Link

Use layer.drawing.range for a local correction without reconstructing the entire sequence:

project.editShotAnimation('walk-shot', [{
  op: 'layer.drawing.range',
  layerId: 'mouth-track',
  startFrame: 10,
  endFrame: 14,
  drawingId: 'mouth-closed',
}]);

The target must already be a drawing-sequence group; initialize it with layer.drawings when needed. The edit replaces exposure keys within [10, 14) and restores the prior sequence's drawing at frame 14. An existing key at the end boundary remains. Use drawingId: null for a blank hold. Signed local frames permit preroll; the range must be nonempty and its endpoints safe integers. Keys outside the range remain, including repeated drawings; the operation does not compact the sequence.

The final shot validator checks child drawing references and drawing-group constraints. Within one edit batch, define any new referenced drawing before final validation. The edit is also accepted by animation.edit plans. Board production.setDrawingRange shares the replacement algorithm and keeps its global nonnegative frame contract.

project.production.drawingNeighbors(groupId, frame, { skipBlank: true }) accepts board or shot-animation drawing group IDs. Board queries use global panel frames; shot queries use local frames in [0, durationFrames). Results contain at most current/previous/next drawing intervals, clipped to the owning panel or shot, without returning artwork. Preroll keys determine the shot's initial exposure; querying outside its output duration rejects. skipBlank skips blank neighboring intervals while retaining a blank current interval. Consecutive keys referencing the same drawing form one hold in this read view.
